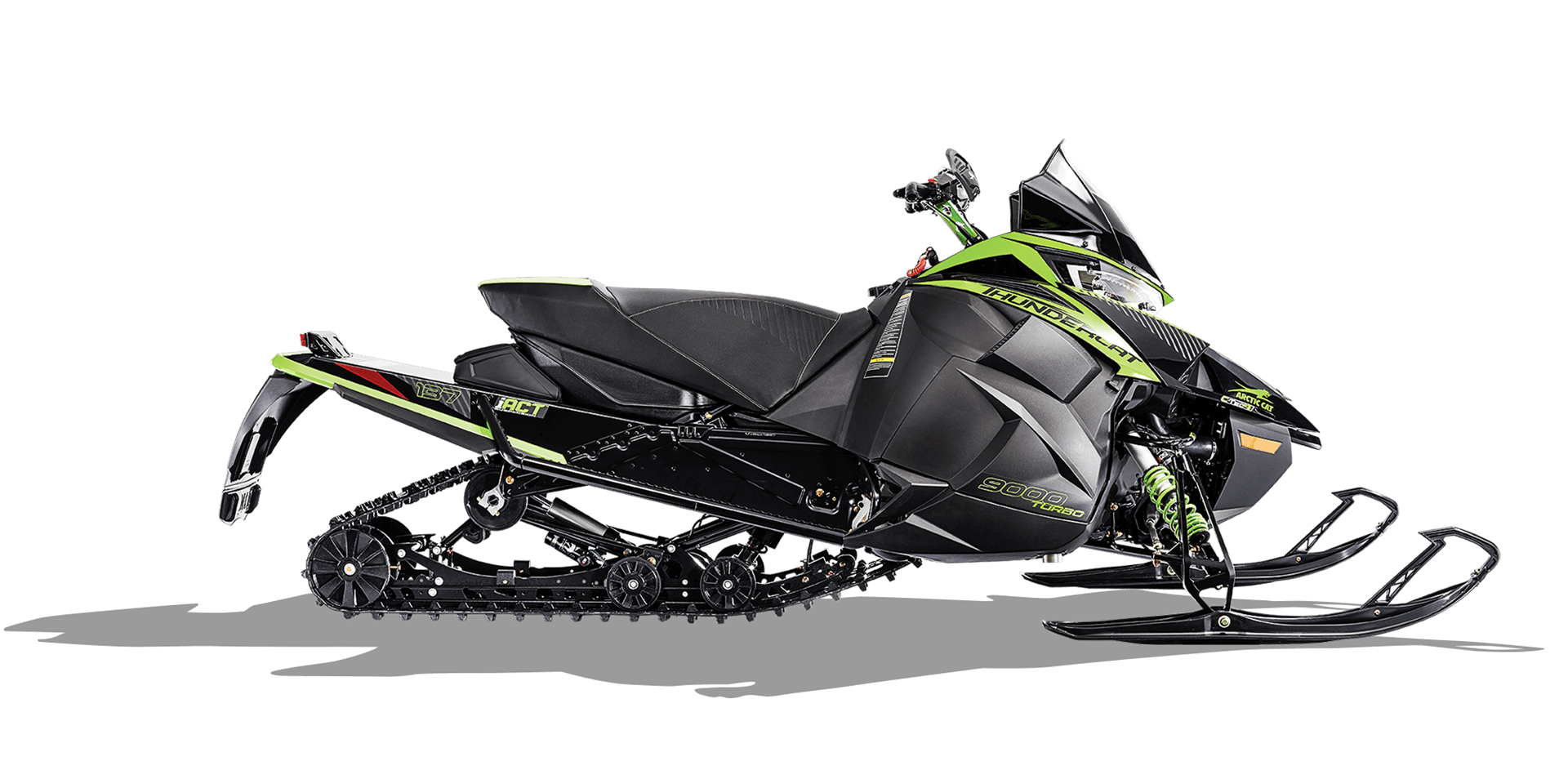

ZR 9000 THUNDERCAT 137" iACT 2019

Bli den första att recensera den här produkten

ZR 9000 THUNDERCAT 137" iACT 2019 - Turbo standard, reglera fjädring från styret, nytt bromsreglage mm...

Tillverkare: Arctic Cat

998cc MOTOR
Från 2018 sitter en 3-cylindrig 4-taktsmotor på ca 190hk. Turbo är standard och motor tillverkare är Yamaha.

NYTT STYRREGLAGE OCH HANDBROMS
Mer slimmat reglage och kortare bromsgrepp samt ny oljebehehållare

ENGINE SPECIFICATIONS

Type	4-stroke
Displacement (cc)	998cc
Cooling	Liquid
Cylinders	3-Turbocharged
Bore x Stroke (mm)	80 x 66.2 mm
Lubrication	Dry sump
Ignition	Digital controlled coil induction
Engine Stator Output	545W @5000 RPM
Fuel Delivery	Electronic Fuel Injected (EFI)
Exhaust	Turbocharger with stainless steel muffler
Fuel Capacity (gal.)	9.9
Oil System Capacity (quart)	3.8
Coolant System Capacity (quart)	5.7
Minimum Octane	91

SUSPENSION SPECIFICATIONS

Front Suspension	Arctic Race Suspension with sway bar and interactive Arctic Cat Technology Suspension
Ski Shocks	FOX 1.5 ZERO iQS
Front Travel (in.)	10
Rear Suspension	SLIDE-ACTION with 3 wheel rear axle assembly, coupling blocks, Torque-Sensing Link rear arm, adjustable torsion springs, and interactive Arctic Cat Technology Suspension
Front Track Shock	Arctic Cat IFP 1.5
Rear Track Shock	FOX 2.0 ZERO iQS
Rear Travel (in.)	13.5

DIMENSIONS SPECIFICATIONS

Chassis Overall Length (in.)	125
Chassis Overall Width (in.)	47.75
Chassis Overall Height (in.)	51.12
Estimated Dry Weight (lbs.)	603
Track Type	Ripsaw
Track Width (in.)	15
Track Length (in.)	137
Lug (in.)	1.00
Pitch (in.)	2.86
Ski Stance (in.)	42-43 Adjustable
Ski Type / Width (in)	ProCross - 6
Runner Type	Single runner w/carbide

POWERTRAIN SPECIFICATIONS

Drive Clutch	CVT Auto-adjusting drive clutch
Driven Clutch	CVT lightweight driven clutch
Drive System	Arctic Drive System
Brakes	Stealth Hydraulic Master Cylinder
Clutch Calibration (ft.)	0-10,000
Gearing	24/50
Chain Pitch	92
Track Drive Sprocket	9 tooth, 2.86 pitch, exvolute
Reverse	Push-button

INSTRUMENTATION SPECIFICATIONS

Type of Gauge	Deluxe Digital
Speedometer	Digital
Tachometer	Digital
Odometer	Digital
Fuel	Digital
Oil	Indicator Light
Coolant	Digital/Indicator Light
Clock	Digital
Battery Voltage	Digital
Altimeter	Digital
Hours	Digital

FEATURE SPECIFICATIONS

Body Plastics	Next Gen
12V Outlet	Standard
Electric Start	Standard
Front Bumper	Sport
Goggle Holder	Standard
Hand & Thumb Warmers	Standard
Handguards	Standard
Headlights	LED w/ accent light
Heated Drivers Seat	Standard
Ice Scratchers	Accessory
Lightweight Brake Disc	Accessory
Mirrors	Accessory
Mountain Strap	Accessory
Passenger Seat	Accessory
Rear Rack	Accessory
Rear Storage	Tunnel Bag
Seat	High Performance
Side Panel Wind Deflectors	Accessory
Sno Pro (hooked) Brake Lever	Accessory
Steering	5.5" riser with adjustable handlebar
Tether Switch	Standard
Tow Hitch	Accessory
Tunnel Flare	Standard
Visor Plug-ins	Accessory
Windshield	11" Mid-height

158.900,00 kr

Onlinelager: Tillfälligt slut - skickas när den finns i lager (6-12 dagar).
